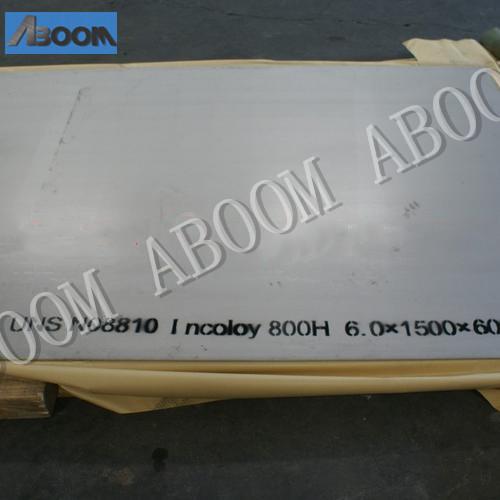

UNS N08810 1.4958 Plate 800H Nickel Based Incoloy Alloy

  • 1
  • 2

Brand Name : ABOOM

Model Number : Incoloy 800H

Certification : EN 10204 Type 3.1

Place of Origin : CHINA

MOQ : 1000kgs

Price : USD Negotiable

Payment Terms : T/T

Supply Ability : 200 TONS PER MONTH

Delivery Time : 7-15dyas

Packaging Details : Standard export packaging

TYPE OF MATERIAL : nickel based alloy

PRODUCT : Nickel Based Incoloy Alloy UNS N08810 / Incoloy 800H / 1.4958 Plate

STANDARD : ASTM A240

GRADE : UNS N08810 / Incoloy 800H / 1.4958

Manufacturing process : The steel melt shall be refined with AOD or equivalent.

Heat Treatment : shall be supplied in the solution annealed / water quenched condition.

Surface Finish : 2B

testing facility : Accept third party testing such as SGS

Contact Now

Nickel Based Incoloy Alloy UNS N08810 / Incoloy 800H / 1.4958 Plate

Incoloy Alloy UNS N08810 nickel based alloy plate Incoloy 800H 1.4958

Material designation: Incoloy 800H nickel based alloy
US grade: NO8810
German grade: X2NiCrAlTi3220

Incoloy 800H (NO8810) nickel-based alloy applications:
Incoloy 800H (NO8810) alloy chemical industry, nuclear generator, nitric acid cooler, acetic anhydride cracking tube, heat exchange equipment, heat exchange tube, etc.


Incoloy 800H (NO8810) nickel-based alloy mechanical properties: see Table-1:
Table-1                                                                                    %

Temp ℃ σЬ/ MPa σ0.2 / MPa δ5 /%
100 425 140 160
300 390 95 115
500 360 80 100
600 300 75 95


Specification:


Regular size(mm):



Cold rolled sheet
0.5 * 1219 * C

1.0 * 1219 * C

1.5 * 1219 * C
2.0 * 1219 * C

2.5 * 1219 * C

3.0 * 1219 * C


Hot rolled plate
3.0 * 1500 * c

4.0 * 1500 * c

5.0 * 1500 * c
6.0 * 1500 * c

8.0 * 1500 * c

10 * 1500 * c
12 * 1500 * c

14 * 1500 * c

16 * 1500 * 6000

18 * 1500 * 6000

20 * 1500 * 6000
25 * 1500 * 6000

30 * 1500 * 6000



Length:
As your requirement
